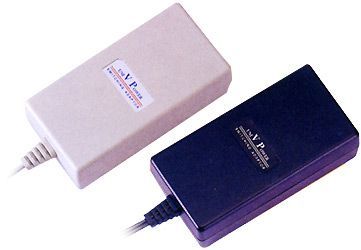

SB36W-Multi-Output Series
Home> Univ Product> Multi-Output Series > SB36W-Multi-output Series
SPECIFICATIONS:
Input Voltage: 90~264 VAC
Input Frequency: 47~63Hz
Input Current: 0.9A(rms)
Operation Temperature: 0℃~40℃
Storage Temperature: -10℃~+85℃
EMI CE, FCC CLASS B, CISPR22 CLASS B
Line Regulation: ±1%MAXIMUM
Hold-up Time: 10msec at 115Vac
Inrush Current: 30 Amps @ 100Vac
Withstand Voltage:
3000Vac from input to output
| Model |
O/P VDC |
O/P Current |
1 Peak |
Total O/P Tolerance |
Max O/P Power |
Typical Efficiency |
| SB-2312F |
3.3 VDC |
2.5 A |
3.0 A |
±5% |
20.25 W |
70 % |
| 12 VDC |
1.0 A |
1.5 A |
±10% |
|||
| SB-2315F |
3.3 VDC |
2.5 A |
3.0 A |
±5% |
23.25 W |
70% |
| 15 VDC |
1.0 A |
1.5 A |
±10% |
|||
| SB-2512F |
5V DC |
2.5 A |
3.0 A |
±5% |
24.50 W |
70% |
| 12 VDC |
1.0 A |
1.5 A |
±10% |
|||
| SB-2515F |
5 VDC |
2.5 A |
3.0 A |
±5% |
27.50 W |
70% |
| 15 VDC |
1.0 A |
1.5 A |
±10% |
|||
| SB-2524F |
5 VDC |
2.5 A |
3.0 A |
±5% |
24.50 W |
70% |
| 24 VDC |
0.5 A |
0.8 A |
±10% |
|||
| SB-2112F |
12 VDC |
1.8 A |
2.5 A |
±5% |
27.60 W |
70% |
| -12 VDC |
0.5 A |
0.8 A |
±10% |
|||
| SB-2105F |
12 VDC |
1.8 A |
2.5 A |
±5% |
26.60 W |
70% |
| -5 VDC |
1.0 A |
1.5 A |
±10% |
|||
| SB-22500F |
12 VDC |
2.0 A |
2.5 A |
±5% |
31.50 W |
70% |
| 5 VDC |
1.5 A |
2.0 A |
±10% |
|||
| SB-23500F |
3.3 VDC |
4.5 A |
5.0 A |
±5% |
22.35 W |
70% |
| 5 VDC |
1.5 A |
2.0 A |
±10% |
|||
| LEVEL VI |
||||||
| SB-35220F-11,-12 |
5 VDC |
2.5 A |
2.8 A |
±5% |
30.5 W |
70% |
| 12 VDC |
1.0 A |
1.2 A |
±10% |
|||
| -12 VDC |
0.5 A |
0.6 A |
±10% |
|||
| SB-35110F-11,-12 |
5 VDC |
2.0 A |
2.5 A |
±5% |
29.5 W |
70% |
| 15 VDC |
1.0 A |
1.5 A |
±10% |
|||
| -15 VDC |
0.3 A |
0.8 A |
±10% |
|||
| SB-35250F-11,-12 |
5 VDC |
2.5 A |
2.8 A |
±5% |
27.0 W |
70% |
| 12 VDC |
1.0 A |
1.5 A |
±10% |
|||
| -5 VDC |
0.5 A |
0.8 A |
±10% |
|||
| SB35120F-11,-12 |
5 VDC |
2.5 A |
3.0 A |
±5% |
31.1 W |
70% |
| 15 VDC |
1.0 A |
1.5 A |
±10% |
|||
| -12 VDC |
0.3 A |
0.5 A |
±10% |
|||
| SB-33220F-11,-12 |
3.3 VDC |
4.0 A |
4.5 A |
±5% |
28.8 W |
70% |
| 12 VDC |
1.0 A |
1.5 A |
±10% |
|||
| -12 VDC |
0.3 A |
0.5 A |
±10% |
|||
| SB-45151F-11,-12 |
5 VDC |
2.0 A |
2.3 A |
±5% |
29.0 W |
70% |
| 15 VDC |
0.8 A |
1.0 A |
±10% |
|||
| -5 VDC |
0.5 A |
0.7 A |
±10% |
|||
| -15 VDC |
0.3 A |
0.5 A |
±10% |
|||
| SB-43552F-11,-12 |
3.3 VDC |
2.5 A |
2.8 A |
±5% |
24.25 W |
70% |
| 5 VDC |
1.5 A |
1.8 A |
±10% |
|||
| -5 VDC |
0.5 A |
0.8 A |
±10% |
|||
| -12 VDC |
0.5 A |
0.5 A |
±10% |
|||
| SB-43522F-11,-12 |
3.3 VDC |
2.5 A |
3.0 A |
±5% |
27.75 W |
70% |
| 5 VDC |
1.5 A |
1.8 A |
±10% |
|||
| 12 VDC |
0.5 A |
0.8 A |
±10% |
|||
| -12 VDC |
0.5 A |
0.8 A |
±10% |
| AC Input |
F-Type (90~264VAC) |
|||||
| AC Plug/Safety |
UL |
CUL |
TUV |
CE |
NEMKO |
C-Tick |
| -11 |
● |
● |
● |
● |
● |
● |
| -12 |
● |
● |
● |
● |
● |
|
-11: IEC 320 Inlet 3 Blades
-12: IEC 320 Inlet 2 Pins
FEATURES:
100% HI-POT TESTED
100% CYCLING BURN-IN
OVERVOLTAGE PROTECTION
OVERCURRENT PROTECTION
