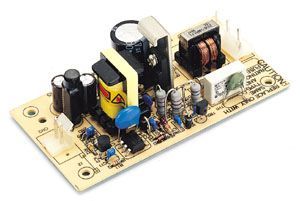

SA15W-Single Output Series

Home>  Product > Open Frame Series > SA15W-Open Frame Series

univpower

SPECIFICATIONS:

Input Voltage: U Type 90~132 VAC / F Type 90~264 VAC
Input Frequency: 47~63Hz

Input Current: 0.4A(rms)
Operation Temperature: 0℃~40℃
Storage Temperature: -10℃~+85℃
EMI CE, FCC CLASS B, CISPR22 CLASS B
Line Regulation: ±1%MAXIMUM
Hold-up Time: 10msec at 115Vac
Inrush Current: 30 Amps @ 100Vac
Withstand Voltage:
U Type 1500Vac from input to output
F Type 3000Vac from input to output

Model

O/P VDC

O/P Current

1 Peak

Total O/P Tolerance

OVP

Max O/P Power

Typical Efficiency

SA-052A4

5 VDC

2.4 A

3.0 A

±5%

7 VDC

12.0 W

70 %

SA-062A0

6 VDC

2.0 A

2.5 A

±5%

8 VDC

12.0 W

70 %

SA-072A0

7.5 VDC

2.0 A

2.5 A

±5%

9 VDC

15.0 W

70 %

SA-091A5

9 VDC

1.5 A

2.0 A

±5%

11 VDC

13.5 W

70 %

SA-121A2

12 VDC

1.2 A

1.5 A

±5%

14 VDC

14.4 W

70 %

SA-141A0

14 VDC

1.0 A

1.3 A

±5%

17 VDC

14.0 W

70 %

SA-151A0

15 VDC

1.0 A

1.3 A

±5%

18 VDC

15.0 W

70 %

SA-180A8

18 VDC

0.8 A

1.0 A

±5%

20 VDC

14.4 W

70 %

SA-240A6

24 VDC

0.6 A

0.8 A

±5%

27 VDC

14.4 W

70 %

AC Input

U-Type (90~132VAC)

F-Type (90~264VAC)

Safety

UL

CSA

CSA

CE



●

●

●

●

FEATURES:

100% HI-POT TESTED

100% CYCLING BURN-IN

OVERVOLTAGE PROTECTION

OVERCURRENT PROTECTION
